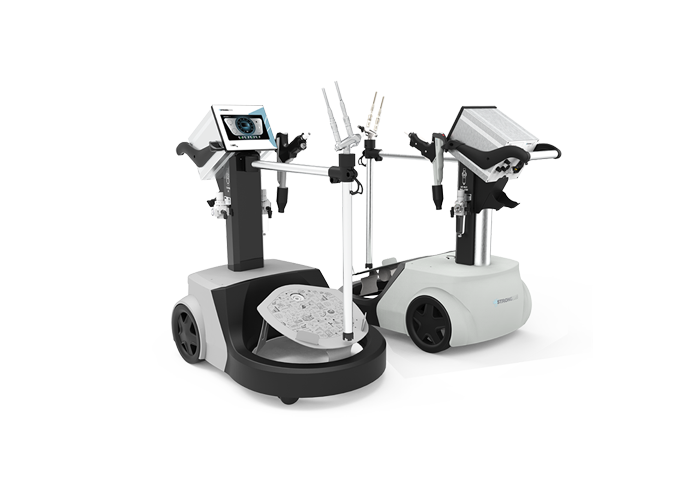

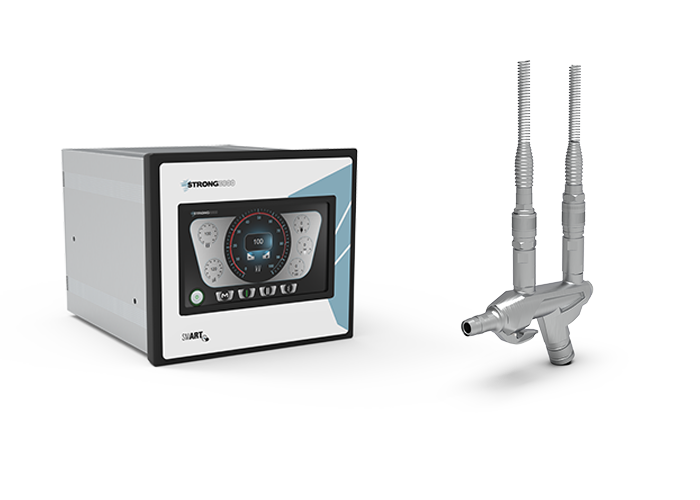

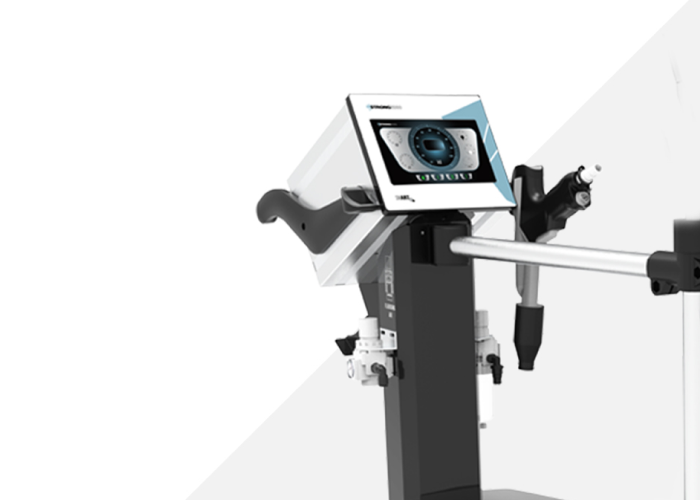

STRONG 3000 | SMART | POWDER COATING MACHINE
STRONG 3000 | SMART | POWDER COATING MACHINE
Low stock: 1 left
SKU:SMART 1
Touch Control
Up to 100 memory locations
Wi-fi connection and remote access
32 bit Cortex A8 ARM Microprocessor
7’TFT Touch Screen
Automatic Optimization System, adjusts current,
voltage etc according to distance of gun, increasing
transfer efficiency
High Coating Performance in Corner Areas
Quick colour change
SPECIFICATIONS
Input voltage |
110-250 Vac (50-60Hz) |
Weight |
35 kg |
Max input pressure |
6 bar |
Max air consumption |
350 Lt/ min (21 m³ / hour) |
Powder box |
25 Lt |
Powder capacity |
360 gr/min |
Protection level |
1P54 |
Operating temperature |
35°C max |
Standard |
EN 500-50 |
Powder pipe sizing |
6,5mt / ø 12mm |

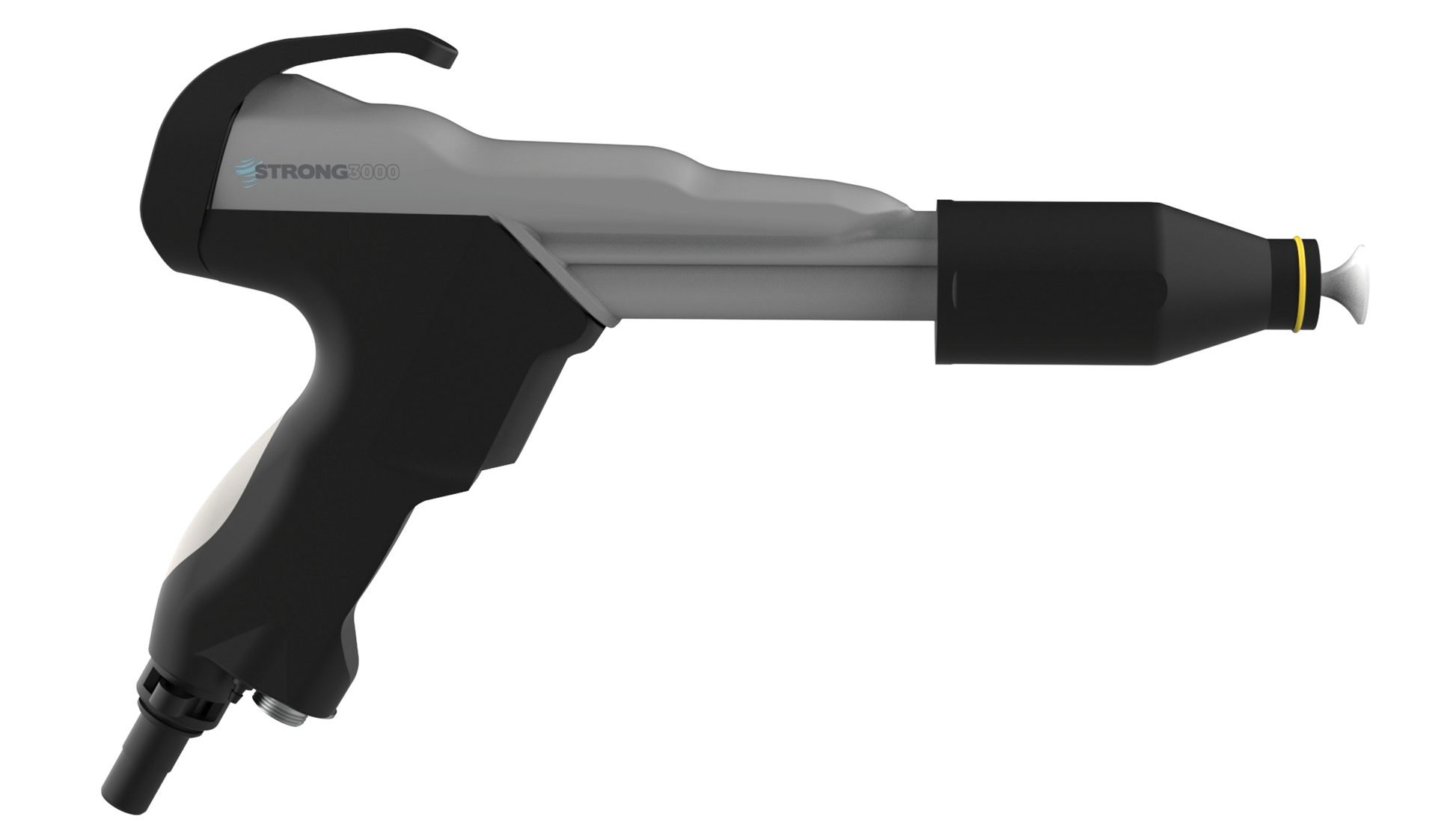

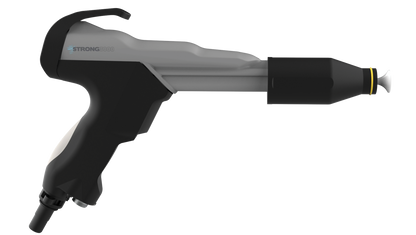

Gun output voltage |
30-85 Kv |
Gun output power |
30-120 µa |
Gun powder capacity |
360 gr/min |
Gun protection level |
1P54 |
Gun weight |
420 g |
Gun cable length |
5 m |
Gun cable voltage |
32 Vds |
